Scotch Yoke Hydraulic Actuator with 135 Bar Pressure 2000psig and High Torque Output
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VSF35-550SR-HY | Arah Tekanan: | Silinder Aksi Ganda |
|---|---|---|---|
| Tipe beraksi ganda: | Silinder Umum | Output Torsi Ganda: | 830~226,400Nm |
| Pegas Keluaran Torsi: | 307~71,753Nm | Tekanan pneumatik: | 3~8 Batang |
| Tekanan hidrolik: | 70/700/135 Batang | Suhu Standar: | -20°C~80°C |
| Suhu rendah: | -40°C~80°C | suhu tinggi: | -20°C~150°C |
| Standar Bahan Segel: | NBR | Bahan Segel Rendah: | HNBR |
| Bahan Segel Tinggi: | Viton | Kapasitas produksi: | 50000pc / y |
| Kode HS: | 84123900 | ||
| Menyoroti: | 135 Bar Hydraulic Actuator,2000psig Scotch Yoke Actuator,High Torque Output Hydraulic Actuator |
||
Deskripsi Produk

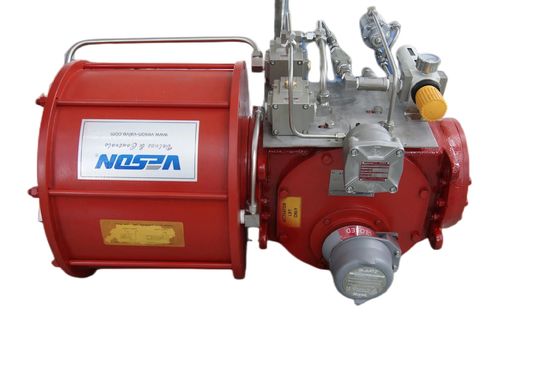

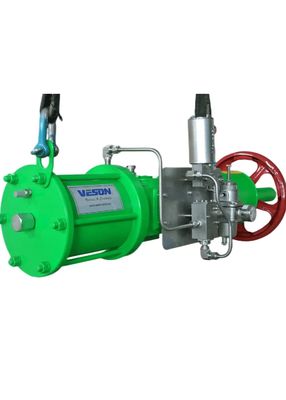

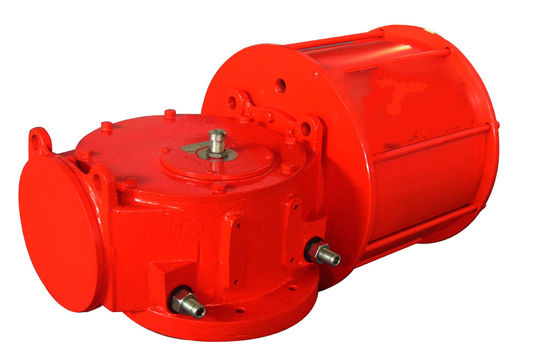

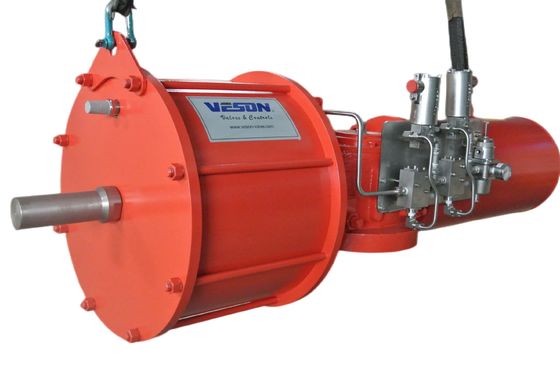

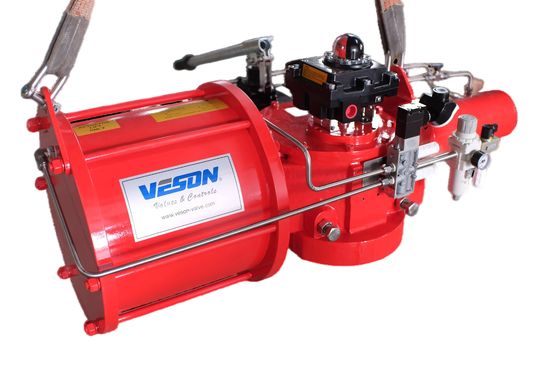

Scotch Yoke Hydraulic Actuator 135 Bar 2000psig
Key Specifications
Torque Outputs (guaranteed):
Double acting: 830~226,400Nm | Spring return: 307~71,753Nm
Operating Pressures:
Pneumatic: 3~8 Bar | Hydraulic: 70/700/135 Bar (100+ bar available on request)
Operating Temperatures:
Standard: -20°C~80°C (NBR seal) |
Low Temp: -40°C~80°C (HNBR seal) |
High Temp: -20°C~150°C (Viton seal)
