Customized Hydraulic Actuator with Normal Temperature Operation and High Hydraulic Pressure for Valve Systems
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VSF35-550SR-HY | Jenis kerja: | Putar |
|---|---|---|---|
| Tekanan: | Tekanan sedang | Suhu kerja: | Suhu normal |
| Jenis akting: | musim semi kembali | Bahan: | baja |
| Struktur: | Rak dan pinion | Output torsi: | 830~226.400Nm (Akting ganda), 307~71.753Nm (Musim semi kembali) |
| Tekanan operasi: | 3~8 Bar (Pneumatik), 100 Bar (Hidrolik) | Suhu operasi: | -20°C~80°C (Standar), -40°C~80°C (Rendah), -20°C~150°C (Tinggi) |
| Bahan segel: | NBR (Standar), HNBR (Rendah), Viton (Tinggi) | Kisaran torsi: | 830Nm-25000Nm (Akting ganda), 307-71753Nm (Musim semi kembali) |
| Tekanan hidrolik: | 100 Bar (standar), dapat disesuaikan lebih dari 100 Bar | Gaya pemasangan: | Bermacam-macam |
| Tipe aktuator: | Seperempat Putaran | ||
| Menyoroti: | Customized Hydraulic Actuator,Normal Temperature Hydraulic Actuator,High Hydraulic Pressure Actuator |
||
Deskripsi Produk
Hydraulic Actuator Rotary Hydraulic Cylinder Actuator Various Mounting Style Valve System Integrator
Heavy Duty Pneumatic Actuators/Hydraulic Actuators for Quarter-Turn Valves and Dampers.
Key Specifications
| Feature | Specification |
|---|---|
| Torque Outputs (Double Acting) | 830~226,400Nm |
| Torque Outputs (Spring Return) | 307~71,753Nm |
| Operating Pressures (Pneumatic) | 3~8 Bar |
| Operating Pressures (Hydraulic) | 100 Bar (higher pressures available upon request) |
Temperature Ranges
- Standard: -20°C to 80°C (NBR seal)
- Low Temperature: -40°C to 80°C (HNBR seal)
- High Temperature: -20°C to 150°C (Viton seal)

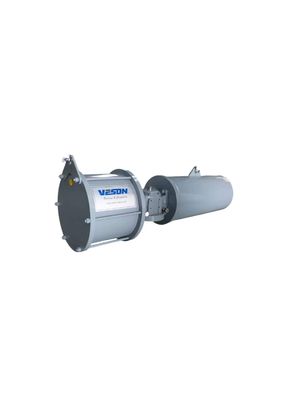

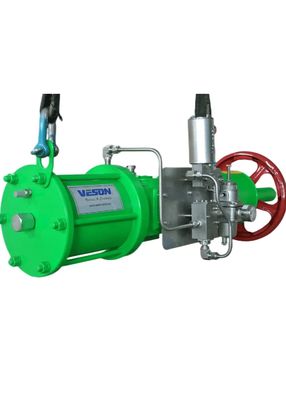

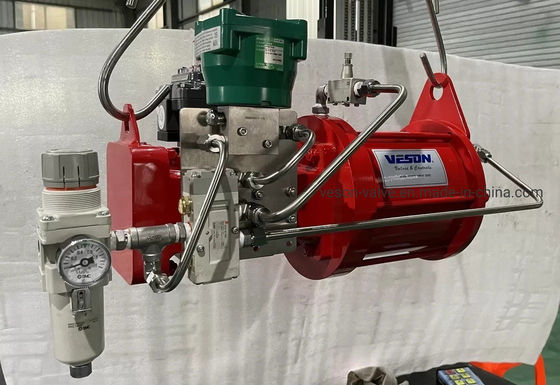

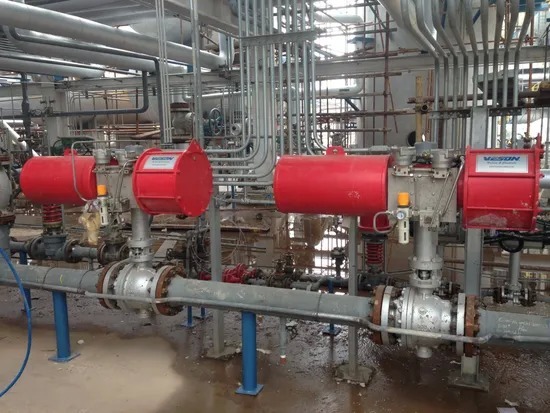

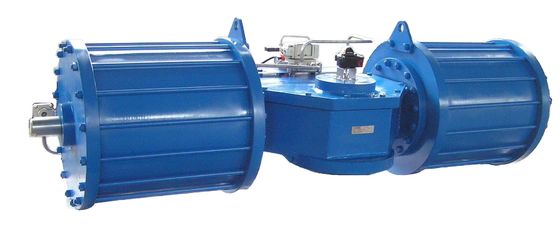

Product Images
