Nickel Plated Pneumatic Actuator with ISO5211/DIN3337 and VDI/VDE3845 Standards for Low Pressure Applications
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Jenis kerja: | Putar |
|---|---|---|---|
| Tekanan: | Tekanan rendah | Suhu kerja: | suhu tinggi |
| Jenis akting: | Akting ganda | Bahan: | Aluminium |
| Struktur: | Rak dan pinion | Torsi output: | 9NM hingga 4620Nm |
| Pasokan Udara: | 6 bar | Pengeboran Bawah: | ISO5211/DIN3337 |
| Standar Antarmuka: | VDI/VDE3845, Namur | penyesuaian pukulan: | +/- 5° |
| Pelapis: | Berlapis Nikel | Model Aktuator: | 15 |
| Kapasitas produksi: | 50000pc / y | ||
| Menyoroti: | ISO5211/DIN3337 Pneumatic Actuator,VDI/VDE3845 Pneumatic Actuator,Low Pressure Pneumatic Actuator |
||
Deskripsi Produk
Pneumatic Actuator Nickle Plated
Product Overview
The VS series rack & pinion type pneumatic actuators deliver reliable performance with these key features:
- 15 actuator models available with output torque ranging from 9NM to 4620Nm at 6 bar air supply
- Bottom drilling complies with ISO5211/DIN3337 standards for valve compatibility
- Interface for solenoid valve, shaft top end and top drilling for accessories follow VDI/VDE3845 and Namur standards
- ±5° stroke adjustment capability

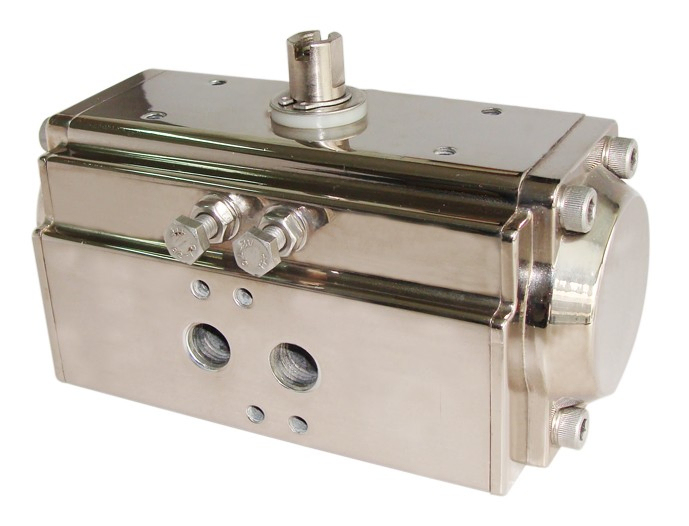

Nickel plating provides superior protection against corrosive and abrasive environments, making this actuator ideal for sanitary industry applications.

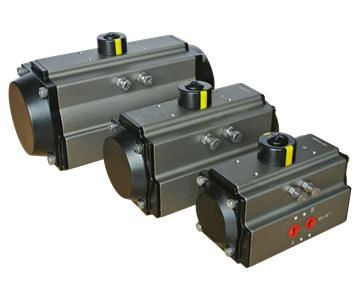

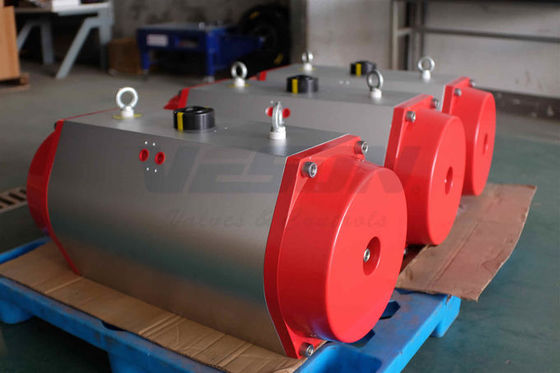

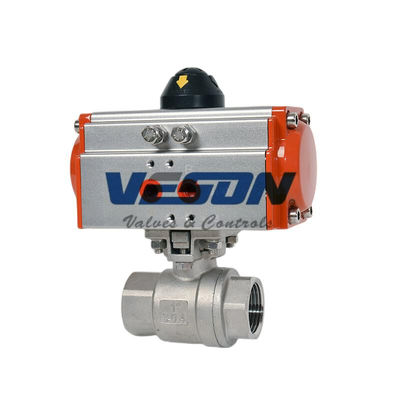

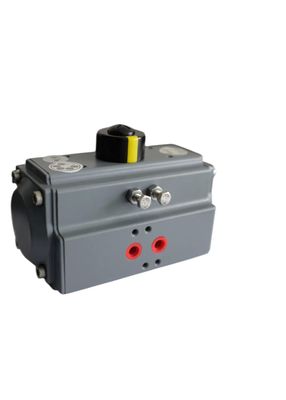

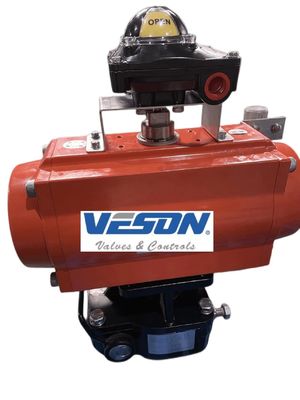

Product Images
