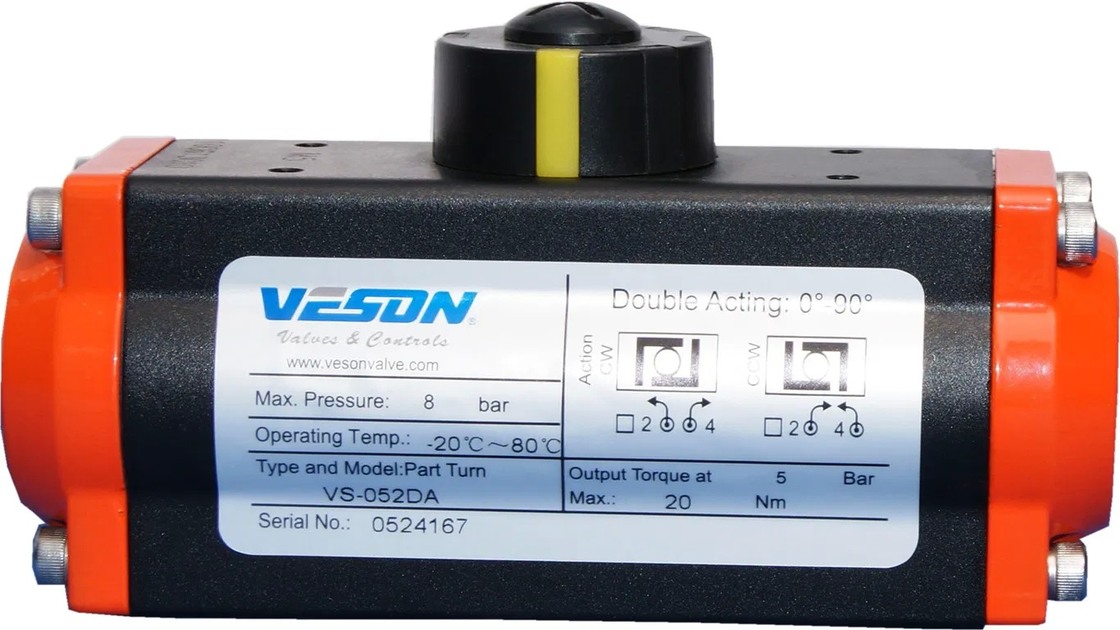

Pneumatic Air Actuator with ISO5211 & DIN3337 Standard CE & SGS Certified Hard Anodized Aluminum Valve Actuator
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Kekuatan: | Pneumatik |
|---|---|---|---|
| Arah Tekanan: | Silinder Aksi Ganda | Bahan Pinion: | Baja Paduan Keras |
| Lapisan Pinion: | Berlapis nikel (lebih dari 15um) | Bahan Tubuh Aktuator: | Ekstrusi aluminium |
| Lapisan Badan Aktuator: | Anodisasi keras (lebih dari 30um) | Bahan Tutup Ujung: | Die casting aluminium |
| Lapisan Tutup Akhir: | Dilapisi epoksi (lebih dari 80um) | Bahan piston: | Die casting aluminium |
| Lapisan Piston: | Anodisasi keras (lebih dari 30um) | Penyesuaian perjalanan: | ±5º dalam posisi terbuka/tertutup |
| Bahan Musim Semi: | Baja tarik tinggi | Pelapisan Musim Semi: | Dilapisi Epoxy |
| Bahan bantalan: | Senyawa yang sangat tahan lama | ||
| Menyoroti: | ISO5211 & DIN3337 Standard Pneumatic Air Actuator,CE & SGS Certified Valve Actuator,Hard Anodized Aluminum Air Torque Actuator |
||
Deskripsi Produk
Air Torque Type Valve Actuator
Position Indicator
All VESON pneumatic actuators feature a position indicator with Namur mounting for accessory attachment.
Pinion
Precision-ground hardened alloy steel pinion with Nickel plating (over 15μm) ensures minimal friction and maximum wear resistance.
Standards: Fully compliant with ISO5211 & DIN3337
Options: Available in stainless steel and aluminum alloy with customizable dimensions
Actuator Body
Hard-anodized aluminum extrusion (over 30μm) provides superior wear and corrosion protection while minimizing piston friction.
Options: Epoxy Coated and PTFE Coated variants available
End Cap
Epoxy coated die-cast aluminum end caps (over 80μm) offer maximum resistance against corrosive elements.
Options: PTFE Coated treatment available
Piston
Precisely balanced, hard-anodized die-cast aluminum piston (over 30μm) with high-quality guides and twin rack-and-pinion design ensures constant torque output.
Travel Adjustment
Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
Epoxy-coated high tensile steel springs provide corrosion resistance and extended service life.
Pre-loaded springs allow for safe and rapid disassembly.
Bearings & Guides
Highly durable compound material ensures high thrust stability with minimal friction for long operational life.
