EL-O-Matic Pneumatic Actuator with Hard Anodized Aluminum Body and Epoxy Coated End Caps for Precise Travel Adjustment ±5º
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Bahan Pinion: | Baja Paduan Keras |
|---|---|---|---|
| Pelapisan Pinion: | Berlapis nikel (lebih dari 15um) | Bahan Tubuh Aktuator: | Ekstrusi aluminium |
| Perawatan Tubuh Aktuator: | Anodisasi keras (lebih dari 30um) | Bahan Tutup Ujung: | Die casting aluminium |
| Perawatan Penutup Akhir: | Dilapisi epoksi (lebih dari 80um) | Bahan piston: | Die casting aluminium |
| Perawatan Piston: | Anodisasi keras (lebih dari 30um) | Penyesuaian perjalanan: | ±5º di kedua posisi |
| Bahan Musim Semi: | Baja tarik tinggi | Pelapisan Musim Semi: | Dilapisi Epoxy |
| Bahan bantalan: | Senyawa yang sangat tahan lama | Standar pemasangan: | ISO5211 & DIN3337 |
| Kapasitas produksi: | 50000pc / y | ||
| Menyoroti: | Hard Anodized Aluminum Pneumatic Actuator,Epoxy Coated Valve Actuator,Travel Adjustment ±5º EL-O-Matic Actuator |
||
Deskripsi Produk
EL-O-Matic Type Valve Actuator Valve Automation
Key Features and Components
- Indicator Position indicator with Namur mounting for accessory attachment, standard on all VESON pneumatic actuators.
- Pinion Hardened alloy steel pinion precision ground and Nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimized piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap Epoxy coated (over 80μm) die casting aluminum end caps for maximum corrosion resistance. PTFE Coated treatment available as an option.
- Piston Precisely balanced, hard anodized (over 30μm) die casting aluminum piston with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment Standard ±5° adjustment in both open and closed positions via easily accessible external adjustment bolts.
- High Performance Springs Epoxy coated high tensile steel springs for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly.
- Bearings & Guides Highly durable compound material provides high thrust stability with minimal friction for long operational life.

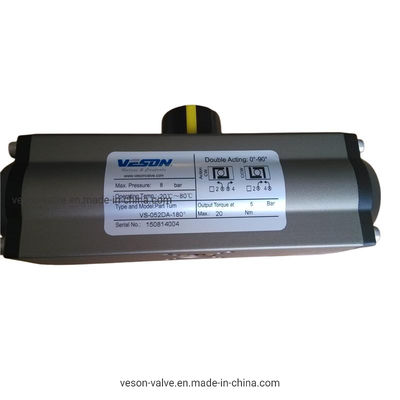

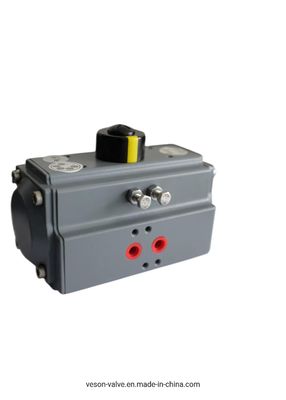

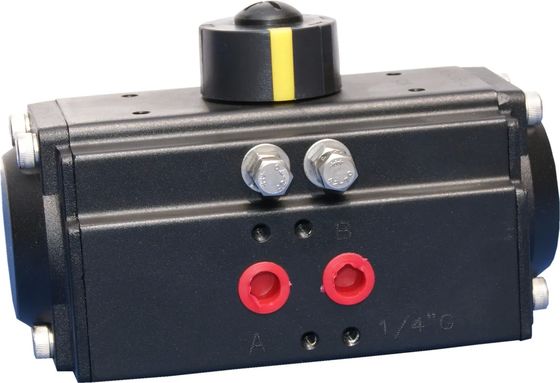

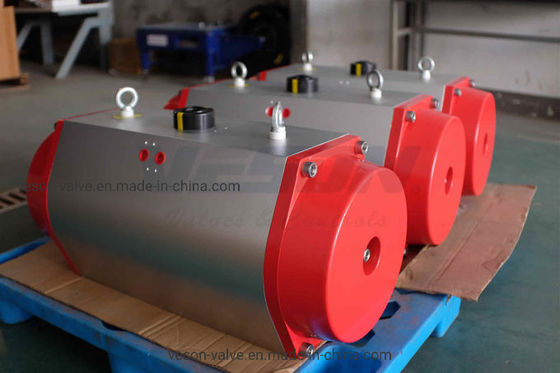

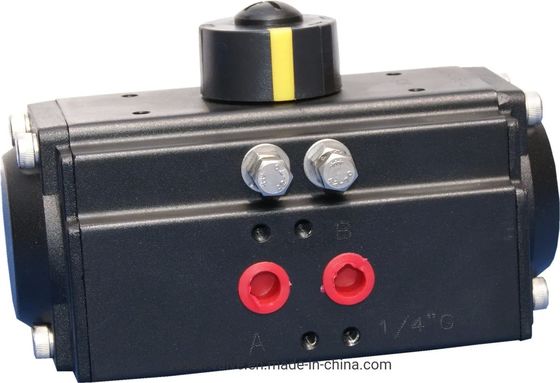

Product Images
