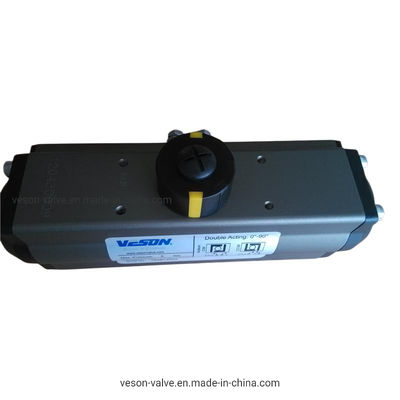

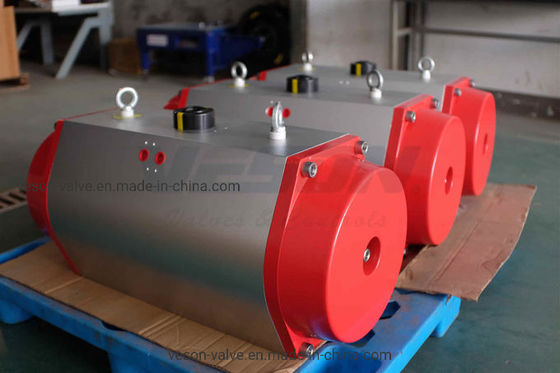

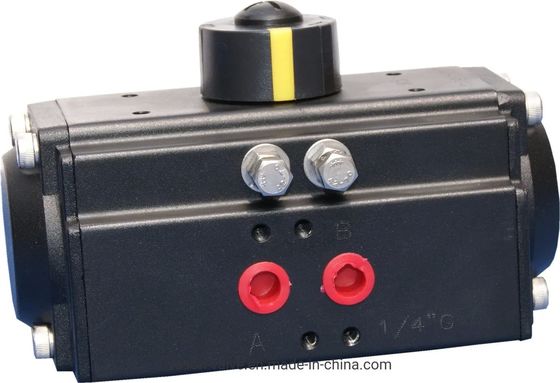

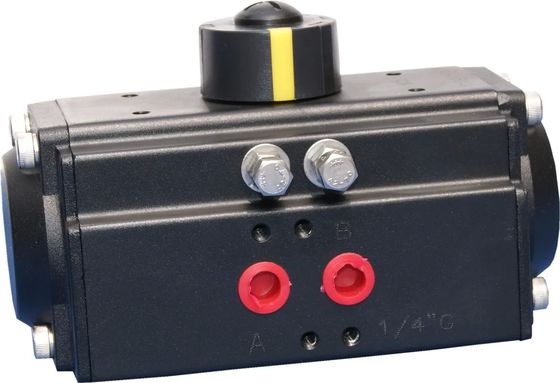

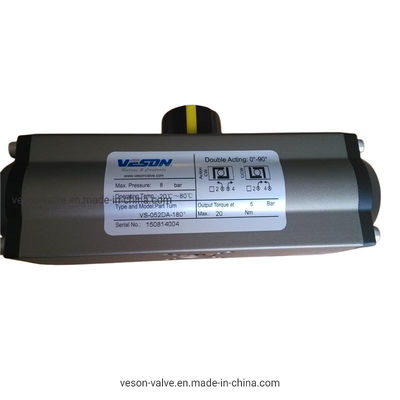

VS-052~VS-400 Model Hard Anodized CE & SGS Certified Aluminum Alloy Pneumatic Actuator with Double-acting Cylinder
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Kekuatan: | Pneumatik |
|---|---|---|---|
| Arah Tekanan: | Silinder Aksi Ganda | Bahan Pinion: | Baja Paduan Keras |
| Pelapisan Pinion: | Berlapis nikel (lebih dari 15um) | Bahan Tubuh Aktuator: | Ekstrusi aluminium |
| Perawatan Tubuh Aktuator: | Anodisasi keras (lebih dari 30um) | Bahan Tutup Ujung: | Die casting aluminium |
| Perawatan Penutup Akhir: | Dilapisi epoksi (lebih dari 80um) | Bahan piston: | Die casting aluminium |
| Perawatan Piston: | Anodisasi keras (lebih dari 30um) | Penyesuaian perjalanan: | ±5º |
| Bahan Musim Semi: | Baja tarik tinggi | Perawatan Musim Semi: | Dilapisi Epoxy |
| Bahan Bantalan & Panduan: | Bahan majemuk yang sangat tahan lama | ||
| Menyoroti: | VS-052~VS-400 Model Pneumatic Actuator,Hard Anodized Pneumatic Actuator,CE & SGS Certified Pneumatic Actuator |
||
Deskripsi Produk
Pneumatic Actuator Aluminum Alloy Manufacturer
Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Pinion
- Hardened alloy steel pinion precision ground and Nickel plated (over 15μm)
- Reduces friction and provides maximum wear resistance
- Full conformance with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Actuator Body
- Hard anodized aluminum extrusion (over 30μm)
- Protects against wear and corrosion while minimizing piston friction
- Optional treatments: Epoxy Coated and PTFE Coated
End Cap
- Epoxy coated die casting aluminum (over 80μm)
- Provides maximum resistance against potentially corrosive elements
- Optional treatments including PTFE Coated
Piston
- Precisely balanced hard anodized die casting aluminum (over 30μm)
- Fitted with high quality guides
- Twin rack and pinion design ensures constant torque output
Travel Adjustment
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel springs with Epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded springs allow safe and rapid disassembly
Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction and long operational life.
Ingin Tahu lebih detail tentang produk ini
