Precision Engineered Medium Pressure Low Temperature Pneumatic Rack and Pinion Actuator for Valve Actuation
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Formulir yang Disesuaikan: | Tipe Beralih |
|---|---|---|---|
| Jenis kerja: | Putar | Tekanan: | Tekanan sedang |
| Suhu kerja: | Suhu rendah | Jenis akting: | Akting ganda |
| Bahan: | Aluminium | Struktur: | Rak dan pinion |
| Sumber Daya: | Pneumatik | Jenis produk: | Aktuator Rak dan Pinion Neumatik |
| Aktuasi: | Seperempat Putaran | Jenis kontrol: | hidup/mati, Pemosisian, Modulasi, ESD |
| Tipe katup: | Bola, Kupu-Kupu, Steker, dan Seperempat Putaran Lainnya | Suhu operasi: | -20 ° C hingga +80 ° C (-4 ° F hingga +176 ° F) |
| Torsi: | 12 Nm hingga 6000 Nm | Tekanan operasi: | 8,3 bar / 120 psi |
| Menyoroti: | Precision Engineered Pneumatic Actuator,Medium Pressure Rack and Pinion Actuator,Low Temperature Valve Actuation System |
||
Deskripsi Produk
Precision Engineered Rack and Pinion Valve Actuation Systems
Crafted for excellence, the Veson VS series actuator delivers unparalleled performance across diverse quarter-turn valve applications. Featuring a robust powder coating and innovative high corrosion-resistant aluminum pinion design with stainless steel fasteners, this actuator offers unmatched durability for long-term reliability.
Key Features
- Hard anodized high-grade aluminum pinion for superior corrosion resistance
- Modular construction for easy alterations between spring/action settings
- Dual valve flange drilling patterns and interchangeable drive inserts
- NAMUR interface standard for seamless accessory integration
- Dual stroke adjustment to prevent premature valve failures
- Standardized components for quick delivery in common configurations
Technical Specifications
| Power Source | Pneumatic |
|---|---|
| Product Type | Pneumatic Rack and Pinion Actuator |
| Actuation | Quarter-turn |
| Control Type | On/Off, Positioning, Modulating, Emergency Shutdown (ESD) |
| Valve Type | Ball, Butterfly, Plug, and other quarter-turn applications |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F), with optional adjustments |
| Torque Range | 12 Nm to 6000 Nm (18 sizes available) |
| Operating Pressure | Up to 8.3 bar / 120 psi |
Available in both single and double acting configurations across 18 sizes, with torque capabilities from 12 Nm to 6000 Nm. Designed for simple installation and years of reliable performance with a "fit and forget" approach.

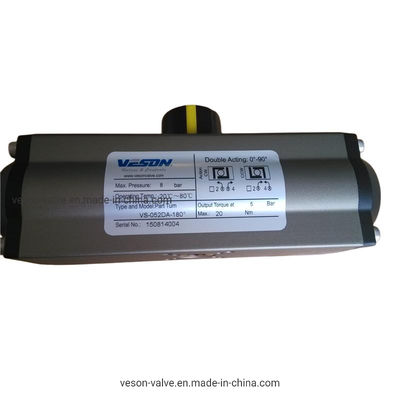

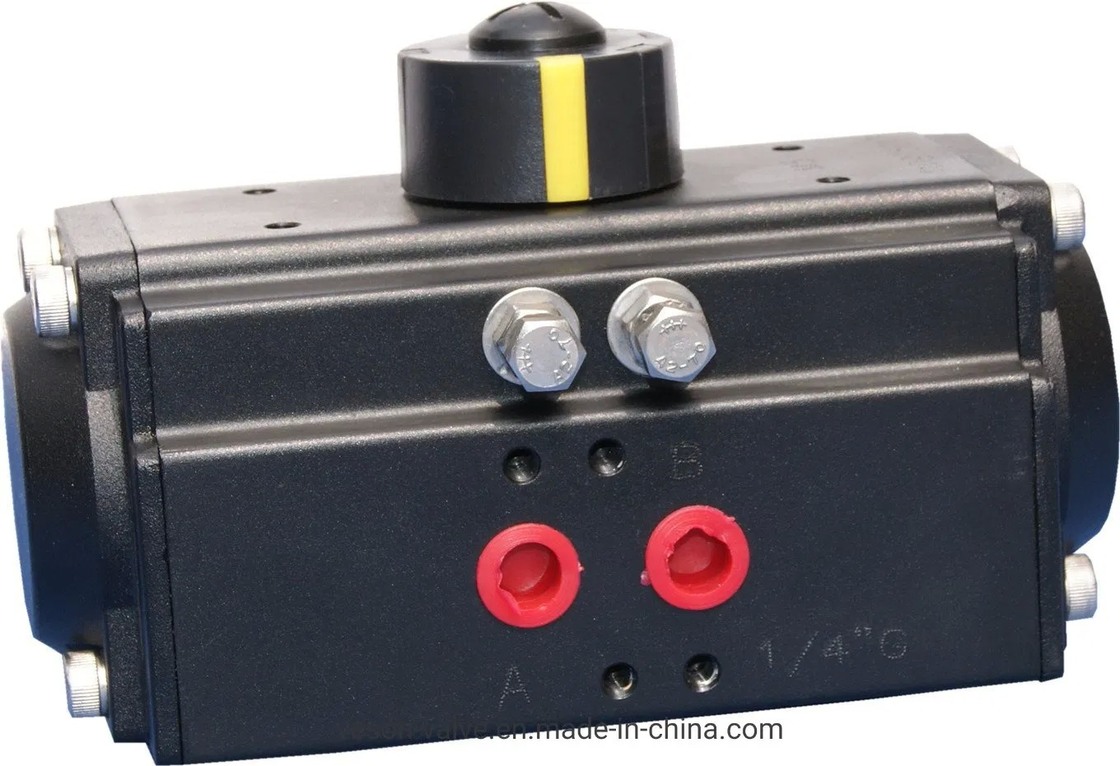

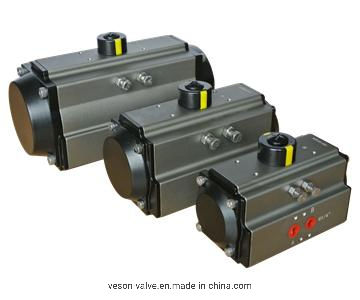

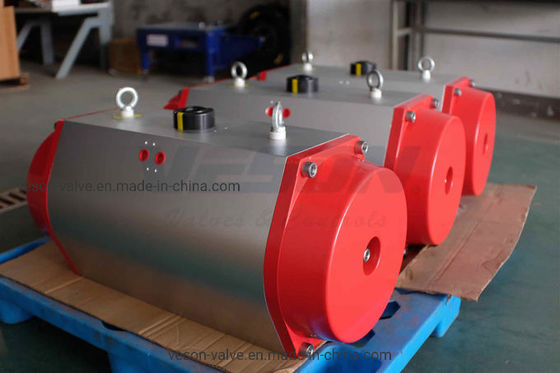

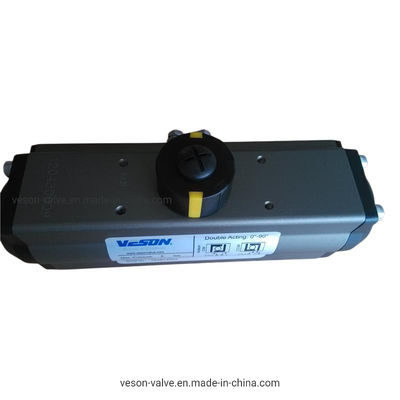

Product Images
