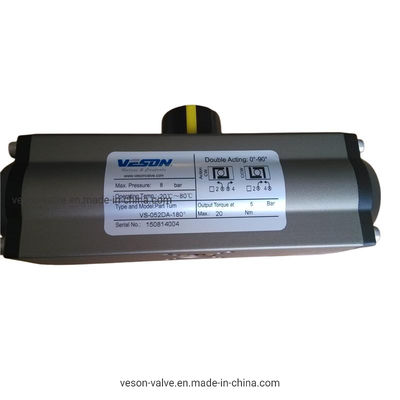

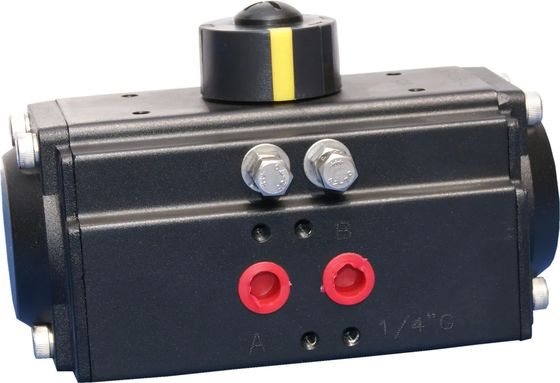

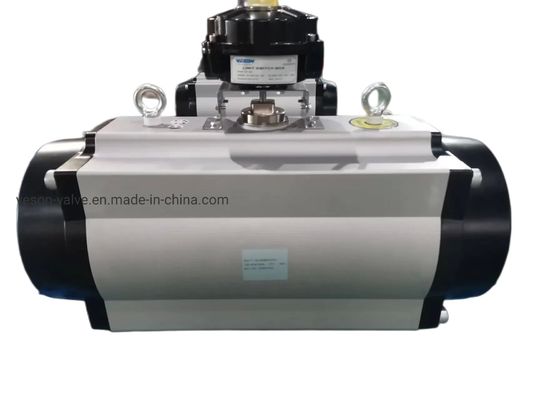

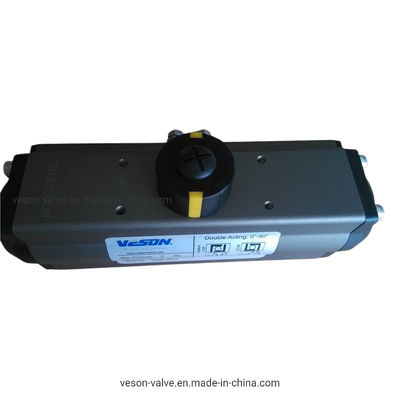

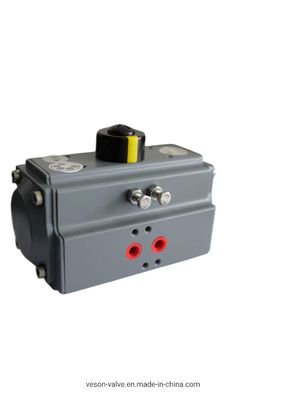

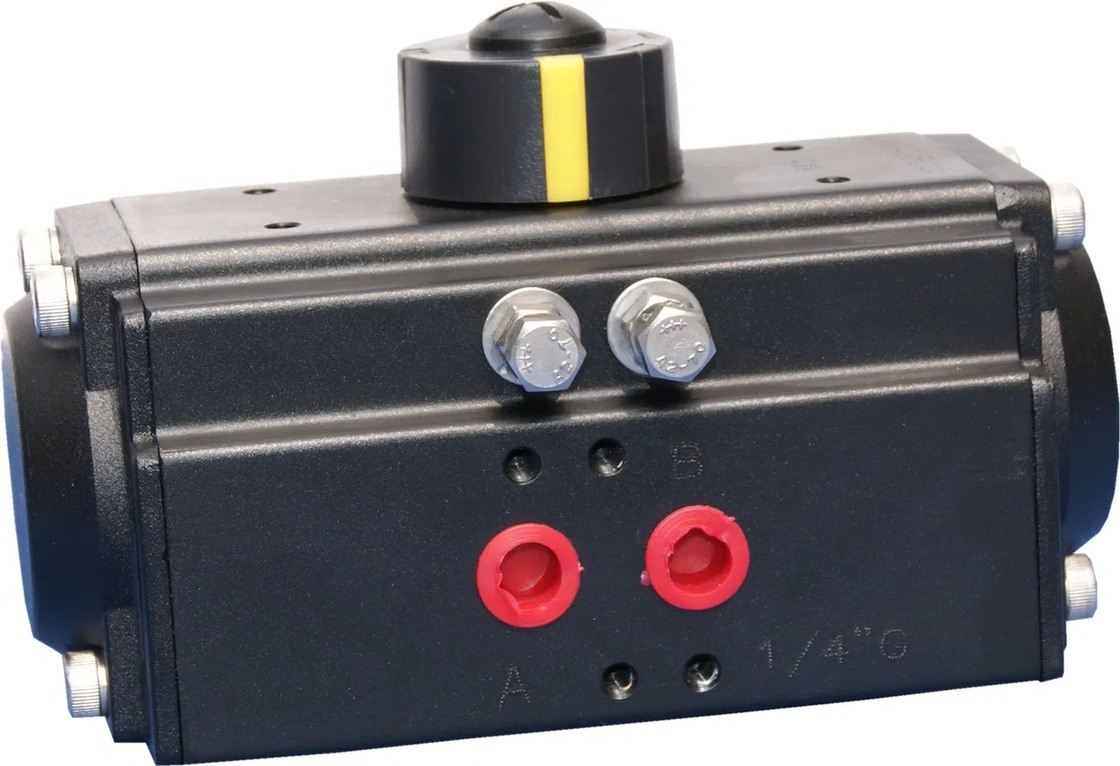

Hard Anodized Aluminum Pneumatic Cylinder with Epoxy Coated End Caps and Travel Adjustment ±5º
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Kekuatan: | Pneumatik |
|---|---|---|---|
| Arah Tekanan: | Silinder Aksi Ganda | Bahan Pinion: | Baja Paduan Keras |
| Pelapisan Pinion: | Berlapis nikel (lebih dari 15um) | Bahan Tubuh Aktuator: | Ekstrusi aluminium |
| Perawatan Tubuh Aktuator: | Anodisasi keras (lebih dari 30um) | Bahan Tutup Ujung: | Die casting aluminium |
| Perawatan Penutup Akhir: | Dilapisi epoksi (lebih dari 80um) | Bahan piston: | Die casting aluminium |
| Perawatan Piston: | Anodisasi keras (lebih dari 30um) | Penyesuaian perjalanan: | ±5º di kedua posisi |
| Bahan Musim Semi: | Baja tarik tinggi | Pelapisan Musim Semi: | Dilapisi Epoxy |
| Bahan bantalan: | Senyawa yang sangat tahan lama | ||
| Menyoroti: | Hard Anodized Aluminum Pneumatic Cylinder,Epoxy Coated Pneumatic Cylinder,Travel Adjustment ±5º Pneumatic Cylinder |
||
Deskripsi Produk
China Manufacturer Pneumatic Cylinder
Product Features
- Indicator: A position indicator with Namur mounting is included on all VESON pneumatic actuators for mounting accessories.
- Pinion: Features a hardened alloy steel pinion that is precision ground and Nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Constructed with hard anodized (over 30μm) aluminum extrusion for wear and corrosion protection while minimizing piston friction. Epoxy Coated and PTFE Coated options available.
- End Cap: Made from epoxy coated (over 80μm) die casting aluminum for maximum resistance against corrosive elements. PTFE Coated treatment available as an option.
- Piston: Precisely balanced with hard anodized treatment (over 30μm) die casting aluminum piston fitted with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
- High Performance Springs: High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
- Bearings & Guides: Highly durable compound material provides high thrust stability with minimum friction and long operational life.
