ISO5211 & DIN3337 Standard CE & SGS Certified VS-052~VS-400 Model Pneumatic Actuator Valve Actuator
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Formulir yang Disesuaikan: | Nyala mati |
|---|---|---|---|
| Jenis kerja: | Putar | Tekanan: | Tekanan sedang |
| Suhu kerja: | Suhu normal | Jenis akting: | Akting ganda |
| Bahan: | Aluminium | Struktur: | Rak dan pinion |
| Bahan Pinion: | Baja Paduan Keras | Lapisan Pinion: | Berlapis nikel (lebih dari 15um) |
| Lapisan Badan Aktuator: | Anodisasi keras (lebih dari 30um) | Lapisan Tutup Akhir: | Dilapisi epoksi (lebih dari 80um) |
| Lapisan Piston: | Anodisasi keras (lebih dari 30um) | Penyesuaian perjalanan: | ±5º |
| Pelapisan Musim Semi: | Dilapisi Epoxy | ||
| Menyoroti: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
Deskripsi Produk

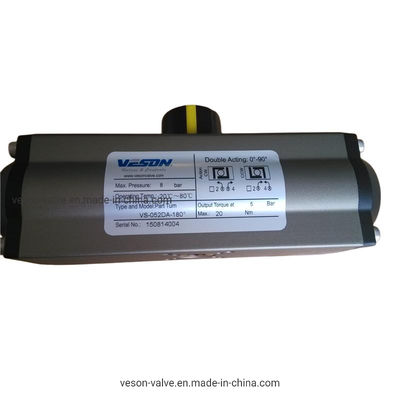

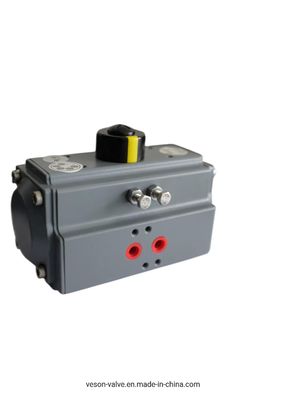

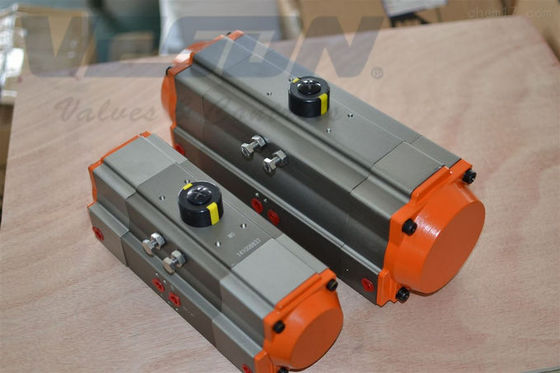

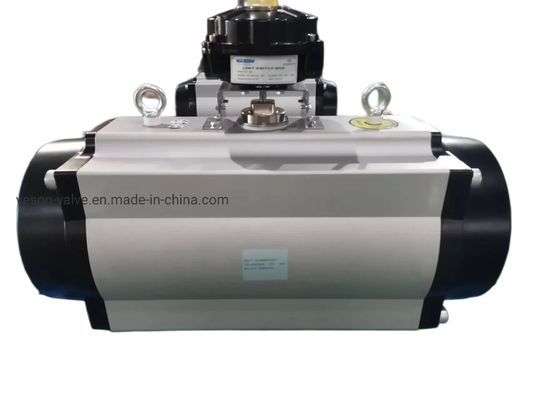

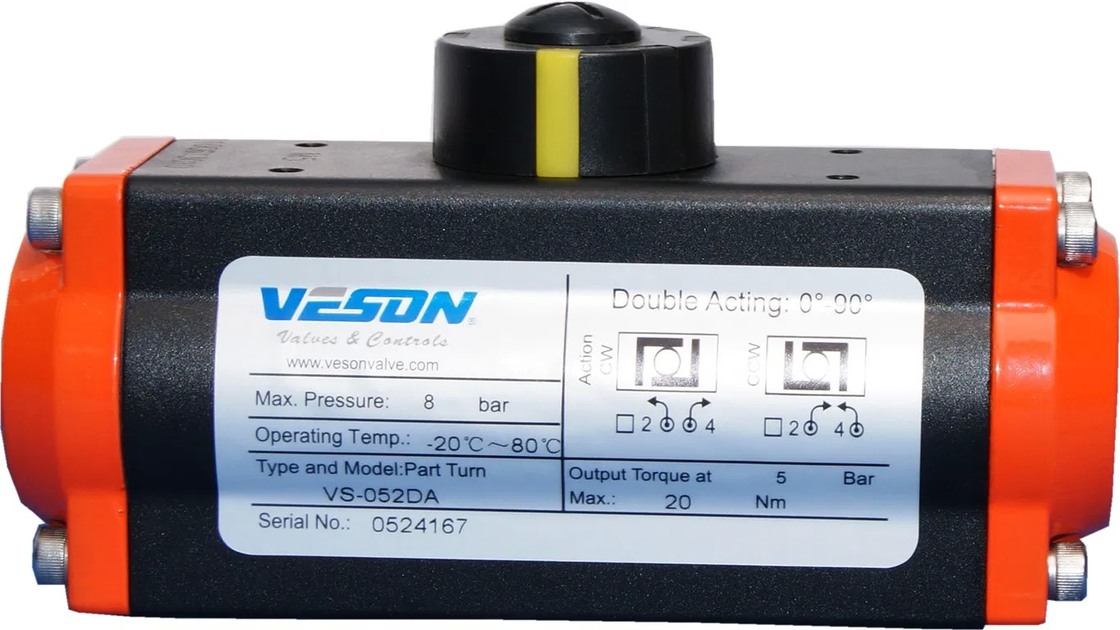

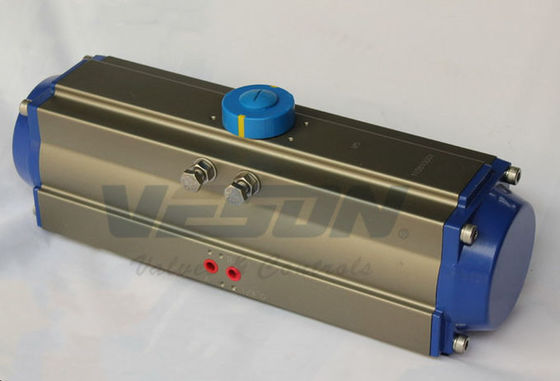

Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
