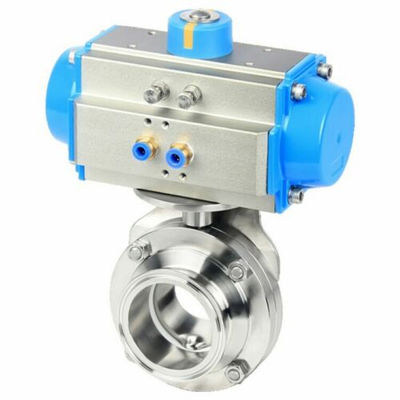

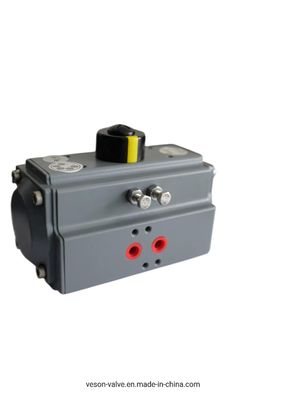

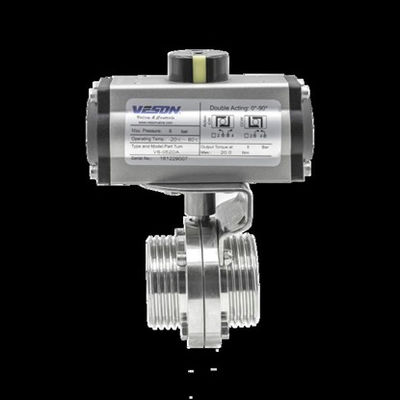

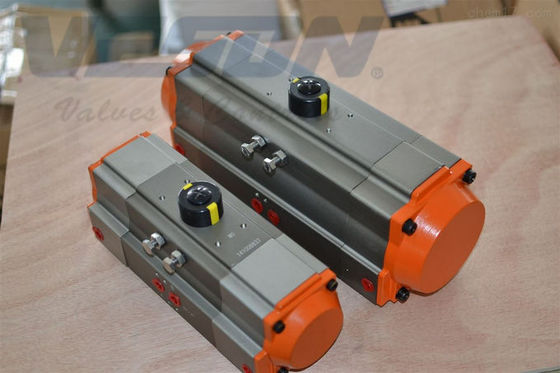

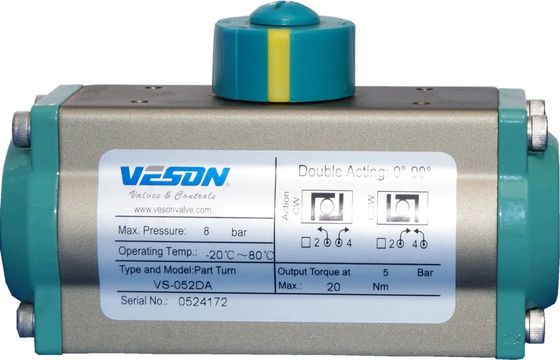

Pneumatic Actuator with Travel Adjustment ±5º Position Indicator and High Performance Springs for Valve Control
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Jenis kerja: | Putar |
|---|---|---|---|
| Tekanan: | Tekanan sedang | Suhu kerja: | Suhu normal |
| Bahan: | Aluminium | Bahan Pinion: | Baja Paduan Keras |
| Lapisan Pinion: | Berlapis nikel (lebih dari 15um) | Lapisan Badan Aktuator: | Anodisasi keras (lebih dari 30um) |
| Lapisan Tutup Akhir: | Dilapisi epoksi (lebih dari 80um) | Lapisan Piston: | Anodisasi keras (lebih dari 30um) |
| Penyesuaian perjalanan: | ±5º | Bahan Pegas: | Baja tarik tinggi |
| Lapisan Pegas: | Dilapisi Epoxy | Bahan bantalan: | Senyawa yang sangat tahan lama |
| Kapasitas produksi: | 50000pc / y | ||
| Menyoroti: | Travel Adjustment ±5º Pneumatic Actuator,Position Indicator Pneumatic Air Actuator,High Performance Springs Rotary Actuator |
||
Deskripsi Produk
Pneumatic Actuator Cylinder Pneumatic Valve Control
Product Features
- Indicator: Position indicator with Namur mounting for accessory attachment
- Pinion: Hardened alloy steel pinion, precision ground and nickel plated (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection with minimal piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
- End Cap: Epoxy coated (over 80μm) die casting aluminum for maximum corrosion resistance. PTFE Coated options available.
- Piston: Precisely balanced, hard anodized (over 30μm) die casting aluminum with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard ±5° adjustment in both open and closed positions via easily accessible external bolts.
- High Performance Springs: Epoxy coated high tensile steel for corrosion resistance and extended service life. Pre-loaded springs allow safe, rapid disassembly.
- Bearings & Guides: Highly durable compound material provides stable thrust with minimal friction and long service life.
