Double Acting Rotork Type Pneumatic Actuator with VS-052~VS-400 Model and Travel Adjustment ±5º
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Kekuatan: | Pneumatik |
|---|---|---|---|
| Arah Tekanan: | Silinder Aksi Ganda | Bahan Pinion: | Baja Paduan Keras |
| Lapisan Pinion: | Berlapis nikel (lebih dari 15um) | Bahan Tubuh Aktuator: | Ekstrusi aluminium |
| Lapisan Badan Aktuator: | Anodisasi keras (lebih dari 30um) | Bahan Tutup Ujung: | Die casting aluminium |
| Lapisan Tutup Akhir: | Dilapisi epoksi (lebih dari 80um) | Bahan piston: | Die casting aluminium |
| Lapisan Piston: | Anodisasi keras (lebih dari 30um) | Penyesuaian perjalanan: | ±5º dalam posisi terbuka/tertutup |
| Bahan Musim Semi: | Baja tarik tinggi | Pelapisan Musim Semi: | Dilapisi Epoxy |
| Bahan bantalan: | Senyawa yang sangat tahan lama | ||
| Menyoroti: | VS-052~VS-400 Model Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Rotork Type Valve Actuator |
||
Deskripsi Produk

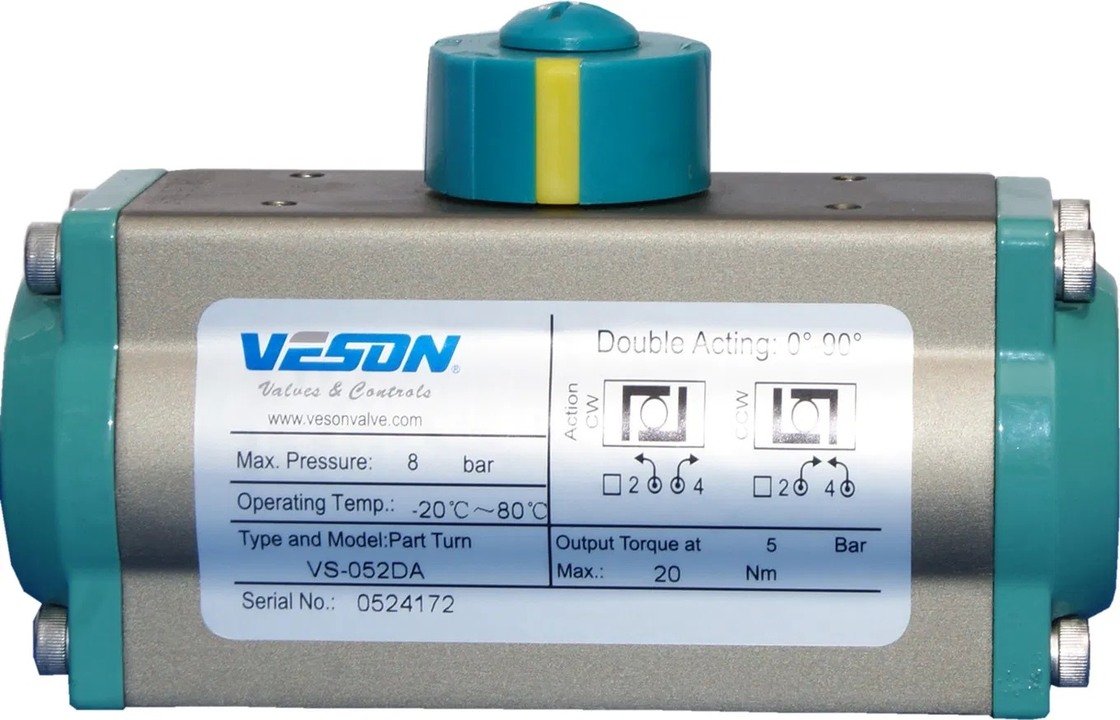

Double Acting Pneumatic Actuator Rotork Type Valve Actuator
This high-performance pneumatic actuator features precision engineering and durable materials for reliable valve operation in industrial applications.
Key Features
- Position Indicator: Standard Namur mounting for accessory installation
- Precision Pinion: Hardened alloy steel with nickel plating (15μm+) for reduced friction and maximum wear resistance
- Durable Actuator Body: Hard-anodized aluminum extrusion (30μm+) with optional epoxy or PTFE coating
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (80μm+) with optional PTFE treatment
- Balanced Piston: Hard-anodized die-cast aluminum (30μm+) with twin rack and pinion design for consistent torque output
- Adjustable Travel: ±5° adjustment in both open and closed positions via external bolts
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and easy maintenance
- Durable Bearings: High-trust compound materials for stability and long service life
Product Images
Technical Specifications
Full conformance with ISO 5211 & DIN 3337 standards. Custom dimensions and material options available including stainless steel and aluminum alloy components.
