Single Acting Pneumatic Actuator with Travel Adjustment ±5º High Performance Springs and Precision Ground Pinion
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model no.: | VS-052 ~ VS-400 | Kekuatan: | Pneumatik |
|---|---|---|---|
| Arah Tekanan: | Silinder Aksi Ganda | Bahan Pinion: | Baja Paduan Keras |
| Lapisan Pinion: | Berlapis nikel (lebih dari 15um) | Bahan Tubuh Aktuator: | Ekstrusi aluminium |
| Lapisan Badan Aktuator: | Anodisasi keras (lebih dari 30um) | Bahan Tutup Ujung: | Die casting aluminium |
| Lapisan Tutup Akhir: | Dilapisi epoksi (lebih dari 80um) | Bahan piston: | Die casting aluminium |
| Lapisan Piston: | Anodisasi keras (lebih dari 30um) | Penyesuaian perjalanan: | ±5º dalam posisi terbuka/tertutup |
| Bahan Musim Semi: | Baja tarik tinggi | Pelapisan Musim Semi: | Dilapisi Epoxy |
| Bahan bantalan: | Senyawa yang sangat tahan lama | ||
| Menyoroti: | Travel Adjustment ±5º Pneumatic Actuator,High Performance Springs Pneumatic Air Actuator,Precision Ground Pinion Pneumatic Rotary Actuator |
||
Deskripsi Produk
Single Acting Pneumatic Actuator
Key Features
- Position Indicator: Standard Namur mounting for accessory attachment on all VESON pneumatic actuators
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions and material options (stainless steel, aluminum alloy) available
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available
- Corrosion-Resistant End Caps: Epoxy-coated (over 80μm) die-cast aluminum with optional PTFE treatment
- Precision Piston: Hard-anodized (over 30μm) die-cast aluminum with high-quality guides. Twin rack and pinion design ensures consistent torque output
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts
- High-Performance Springs: Epoxy-coated high tensile steel for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly
- Premium Bearings & Guides: High-durability compound material provides stable thrust with minimal friction for long operational life

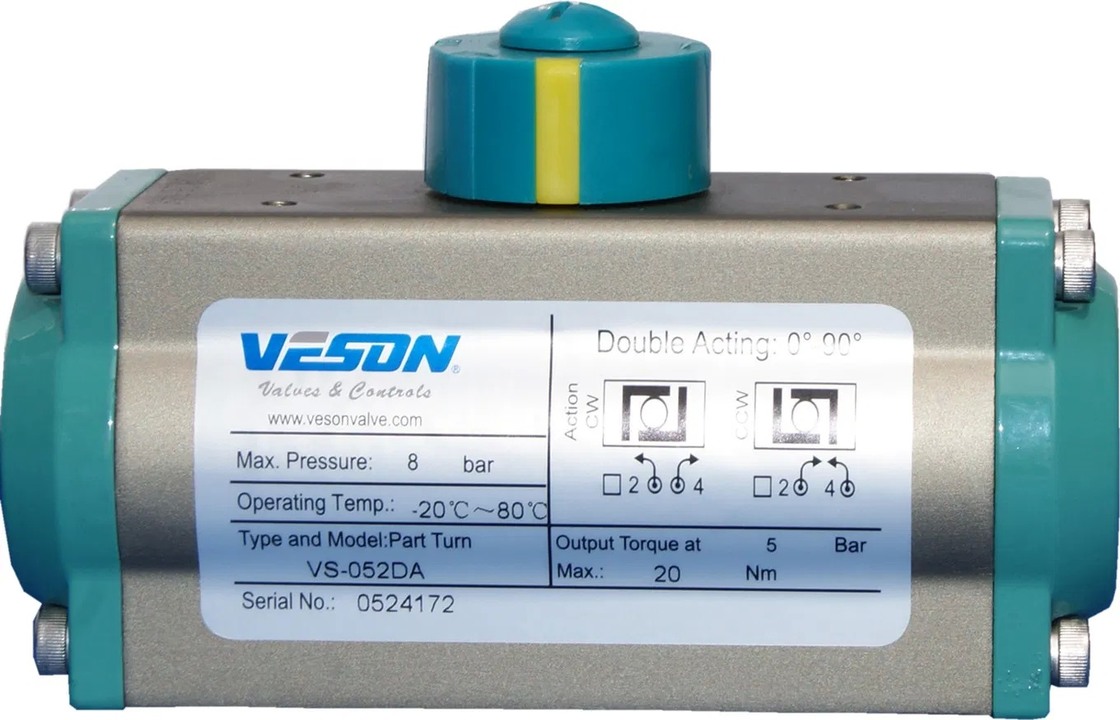

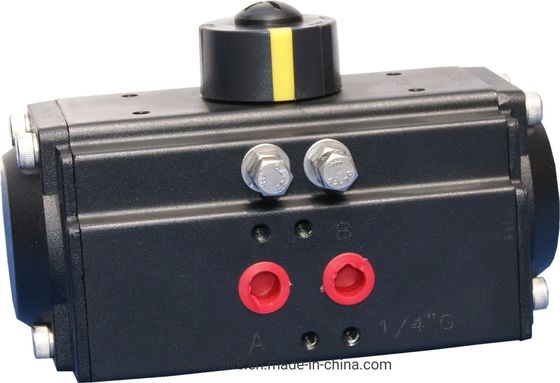

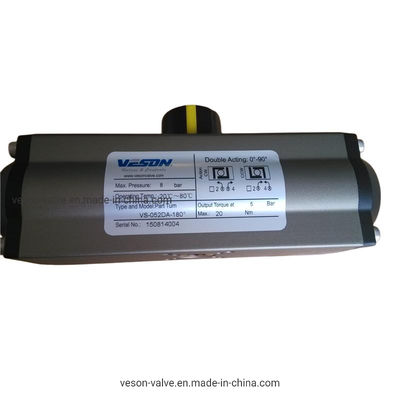

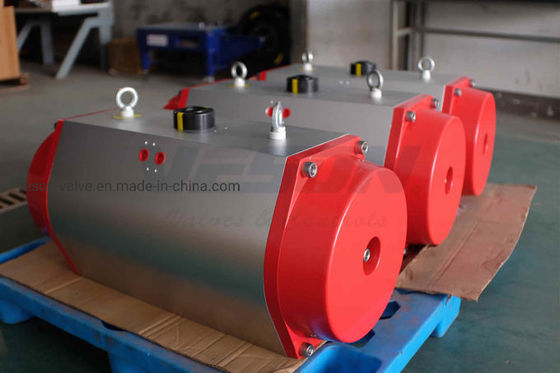

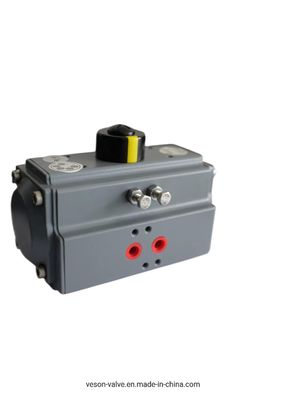

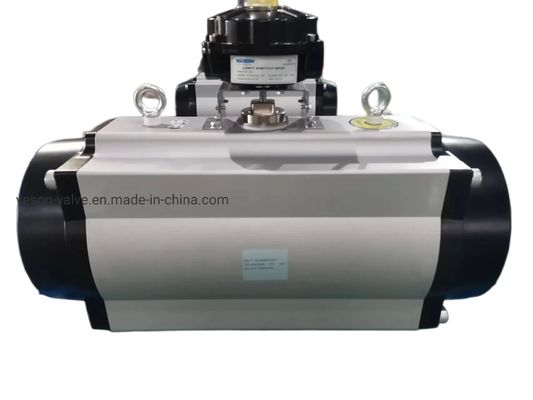

Product Images
