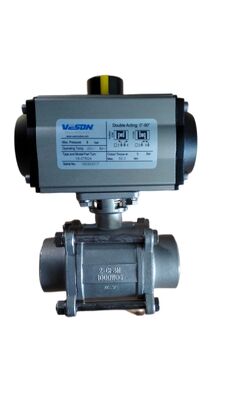

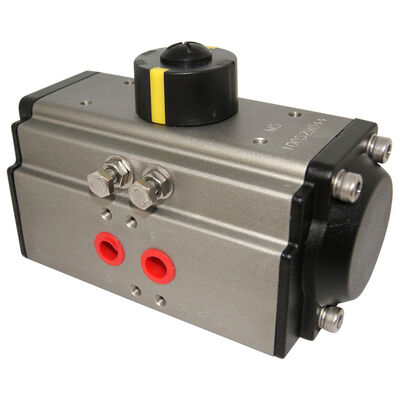

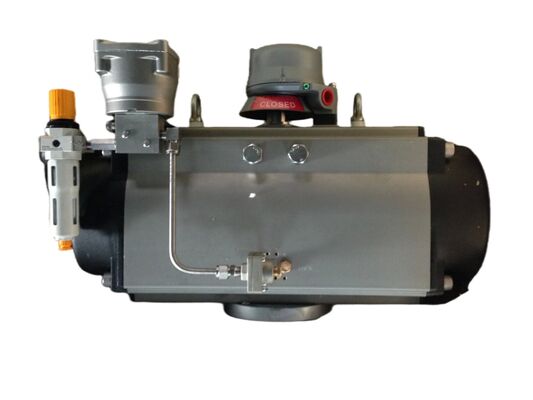

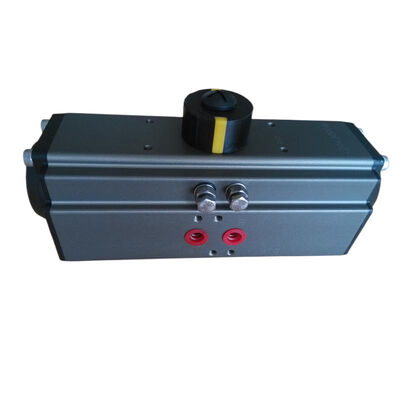

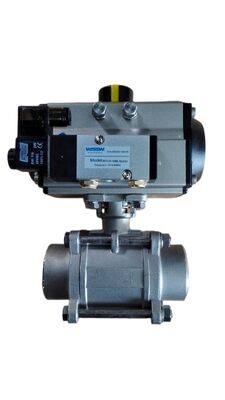

Rack Pinion Pneumatic Actuator with VDI/VDE3845 Standard Hard Anodized Treatment and Epoxy Coated for Industrial Usage
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Nomor Model.: | VS-083 | Saluran: | Tipe lurus melalui |
|---|---|---|---|
| Struktur: | Piston | Jenis: | Rak & pinion |
| Standar: | ISO5211 | Aplikasi: | Penggunaan Industri, Penggunaan Industri Air |
| Paket Transportasi: | Paket kasus kayu lapis | Spesifikasi: | VS/32DA -400DA. atau 52SR-400SR |
| Merek dagang: | Veson atau Cusomer "s | Asal: | Tiongkok |
| Kode Hs: | 84123900 | Kapasitas Produksi: | 50000pc / y |
| Menyoroti: | VDI/VDE3845 pneumatic rack actuator,hard anodized rack pinion actuator,epoxy coated industrial pneumatic actuator |
||
Deskripsi Produk
VS-075 (rack& pinion) have the following features.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 86NM; Single: 15~35Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
