ASME B16.34 Pneumatic Ball Valve with 8Nm-4583N.m Torque and CF8/CF8M/CF3M Construction
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model No.: | VS-210SR08-FO | Formulir Koneksi: | Flens |
|---|---|---|---|
| Jenis saluran: | Lurus melewati | Struktur: | Katup bola mengambang |
| Ukuran katup: | 1/4 "~ 4" (dn6 ~ dn100) | Bahan tubuh: | CF8/CF8M/CF3M |
| Bahan bola: | CF8/CF8M/CF3M | Bahan kursi: | Ptfe, rtfe, grafit & lainnya |
| Peringkat tekanan: | 1000wog, 2000wog | Jenis koneksi: | Benang wanita, SW, pantat-weld |
| Kisaran torsi: | 8NM-4583N.M | Fungsi: | Katup blow-down, katup relief, katup bypass |
| Jenis aktuasi: | Kuartal pneumatik | Tipe katup: | 2 arah |
| Koneksi Akhir: | 3-pc ujung kacau | ||
| Menyoroti: | ASME B16.34 Pneumatic Ball Valve,8Nm-4583N.m Actuated Ball Valve,CF8/CF8M/CF3M Pneumatic Actuated Valve |
||
Deskripsi Produk

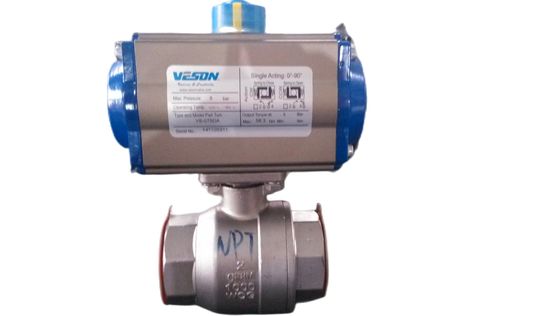

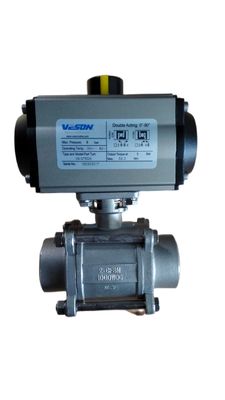

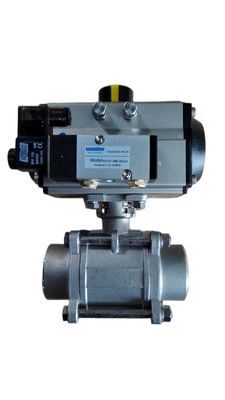

2-Way Pneumatically Actuated Ball Valve Pneumatic Quarter-Turn Actuator Actuated Valve
VS series pneumatic actuated ball valve (3-PC SCREWED END) offers reliable performance for industrial fluid control applications.
Product Specifications
| Feature | Specification |
|---|---|
| Valve Type | 3-PC Screwed End Ball Valve (two way) |
| Valve Size | 1/4"~4" (DN6~DN100) |
| Body/Ball Material | CF8/CF8M/CF3M |
| Seat Material | PTFE, RTFE, Graphite & Others |
| Rating | 1000WOG, 2000WOG |
| Connection | Female Thread, SW (Socket Welded), Butt-weld |
Key Features
- Pneumatic quarter-turn actuator for precise control
- Durable construction with CF8/CF8M/CF3M materials
- Multiple seat material options for different applications
- Available in various connection types for flexible installation
- Suitable for high-pressure applications with 1000WOG/2000WOG ratings
