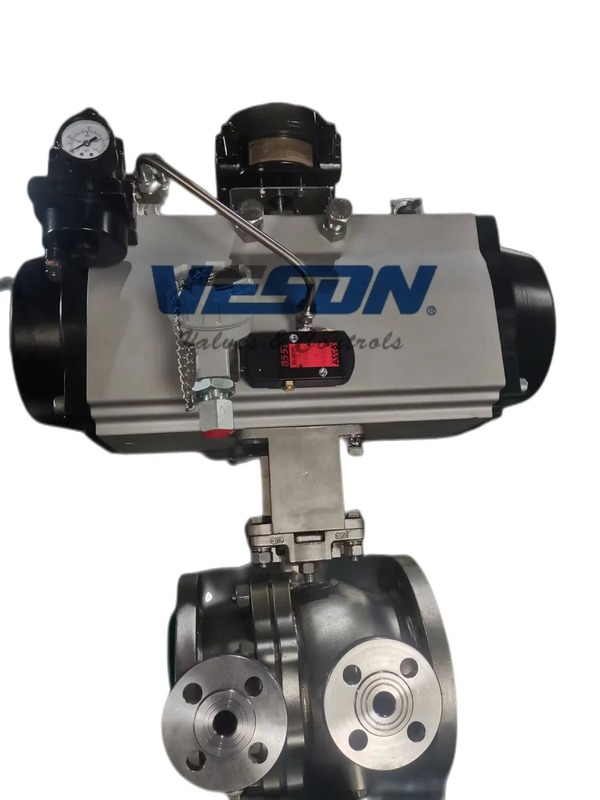

Pneumatic Jacketed Ball Valve with Pressure Rating 150#-600# Size 1/2"-24" DN15-DN600 for Steam Sulphur Applications
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Jenis saluran: | Tipe lurus melalui | Struktur: | Katup bola mengambang |
|---|---|---|---|
| Tipe katup: | Katup bola mengambang | Peringkat Kelas: | 150# --- 600# PN16-PN110 |
| Kisaran ukuran: | 1/2 "-24" DN15-DN600 | Bahan tubuh: | Baja karbon, baja tahan karat, baja tahan karat dupleks, perunggu, inconel |
| Koneksi Akhir: | Flange End (RF, RTJ) | Jenis Operasi: | Manual, Gear, Pneumatik, Listrik |
| Peringkat tekanan: | Kelas150 - Kelas 2500 atau PN 16 - PN 420 | Opsi material: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C9 |
| Pelestarian panas: | Ya | isolasi dingin: | Ya |
| Diameter aliran: | Berdiameter penuh | Kinerja kebocoran: | Tidak ada kebocoran |
| Jenis konstruksi: | Monolitis | ||
| Menyoroti: | Pressure Rating 150#-600# Pneumatic Ball Valve,Size 1/2"-24" Jacketed Ball Valve,DN15-DN600 Steam Sulphur Ball Valve |
||
Deskripsi Produk
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in petroleum, chemical, metallurgical, pharmaceutical, and food industries.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight than traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability compared to cast alternatives.
- Superior heat preservation and cold preservation capabilities
- Full-diameter design reduces media flow resistance
- Monolithic construction prevents leakage
- Compact and lightweight design
- Enhanced pressure resistance
Sizes: 1/2" - 24", DN 15 - DN 600
Pressure Rating: Class150 - Class 2500 or PN 16 - PN 420
Material of valve body: WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
