Pneumatic Ball Valve with Class 150-1500 Lb Pressure Rating and PN 10 ~ 250 for DN15-200 Applications
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model No.: | VS-052 ~ VS-400 | Jenis saluran: | Lurus melewati |
|---|---|---|---|
| Jenis struktur: | Bola Mengambang | Cara yang dioperasikan: | Tuas, gigi, pneumatik, listrik |
| Bahan tubuh: | Baja karbon, baja tahan karat, stainless dupleks | Kisaran ukuran: | NPS 1/2 "-8", DN15-200 |
| Kelas tekanan: | Kelas 150-1500 lb, PN 10-250 | Koneksi Akhir: | Flange, BW, SW, NPT |
| Bahan bola: | Baja pemotongan gratis, baja tahan karat (1.4571/316Ti) | Bahan penyegelan: | Plastik, logam |
| Tekanan maksimal: | PN500 | Kisaran suhu: | -20 ° C hingga +80 ° C (-4 hingga +176 ° F) |
| Permukaan akhir: | Oksida hitam, lapisan seng, seng nikel | Kapasitas produksi: | 50000pc/y |
| Rentang dn: | DN04 ke DN25 | ||
| Menyoroti: | Class 150-1500 Lb Pneumatic Ball Valve,PN 10 ~ 250 Pneumatic Ball Valve,DN15-200 Pneumatic Ball Valve |
||
Deskripsi Produk

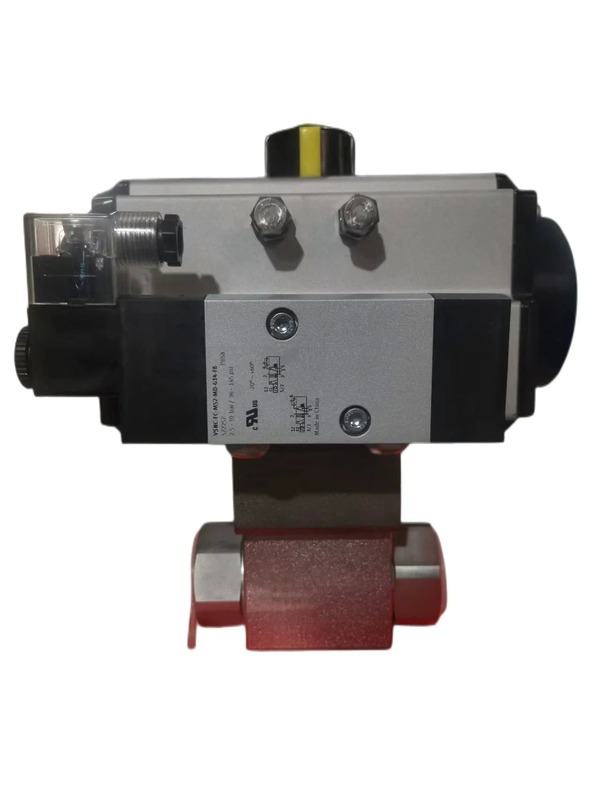

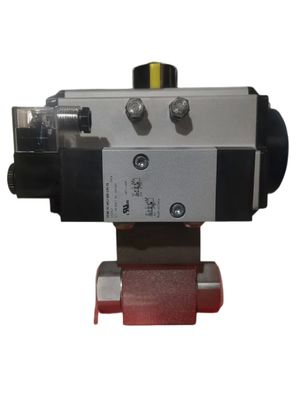

BKH - Block-Type Ball Valve with Pneumatic Actuator
High-performance 2-way ball valves designed for demanding industrial applications including construction machinery, agricultural equipment, mobile hydraulics, mining, and gas industries.
Key Features
- Available in sizes DN 4 to DN 25
- Multiple connection options including thread, compression fitting, and welding ends
- Robust construction with pressure ratings up to PN500
- Optional configurations with actuators, position switches, and locking devices
- Wide temperature range: -20°C to +80°C (-4 to +176°F)
Technical Specifications
| Component | Material |
|---|---|
| Body | S460N, S355 steel |
| Ball & Stem | Free cutting steel or stainless steel (1.4571/316Ti) |
| Sealing | Plastics or metal |
| Surface Treatment | Black oxide finishing, zinc-layer, or zinc nickel |
Connection Options
Compression fitting (light and heavy series), BSP thread, NPT thread, welding end and welding taper, UNC/UNF female thread, bulkhead connection, plug-in socket, plug nipple, and thread connection.
Applications
Ideal for hydraulic systems in construction, agriculture, mining, and gas industries. Materials and seals can be customized for specific application requirements.
