Pneumatic Ball Valve with 2-Piece Design 1000WOG and ISO5211 Standard for Reliable On-Off Control
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model No.: | VS-075DA | Formulir Koneksi: | Benang |
|---|---|---|---|
| Mode mengemudi: | Pneumatik | Tekanan nominal: | KELAS ANSI 150-900 |
| Saluran: | Tipe lurus melalui | Struktur: | Katup bola mengambang |
| Suhu: | Suhu normal | Cairan kontrol: | Udara, air umpan boiler, minyak kargo, kondensat, corr |
| Kursi material: | Ptfe R-Ptfe Peek | Tubuh Bahan: | Stainless Steel, 316 304 |
| Spesifikasi: | 1 inci-12 inci | Tipe port: | Pelabuhan Penuh |
| Koneksi Akhir: | NPT, soket las atau lasan pantat | Desain Aktuator: | Rak dan pinion |
| Pad pemasangan: | Iso | ||
| Menyoroti: | 2-Piece Design Pneumatic Ball Valve,1000WOG Actuated Ball Valve,ISO5211 Standard Control Valve |
||
Deskripsi Produk

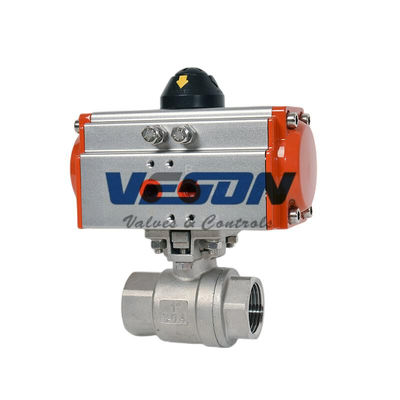

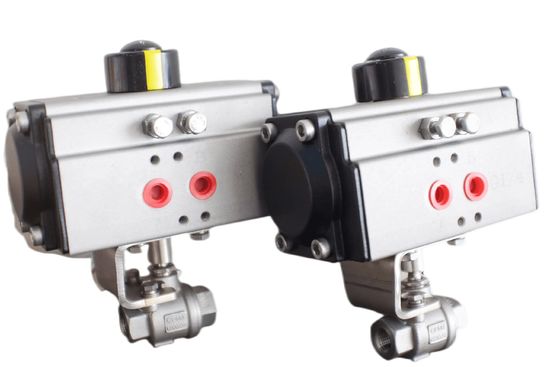

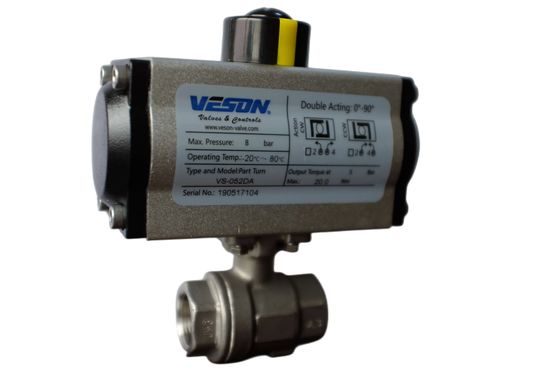

Pneumatic Actuated Screwed Ball Valve Air Actuated 2-Piece Stainless Ball Valves - Rack & Pinion On-Off Control Valve Ball Valve 1" 1000WOG

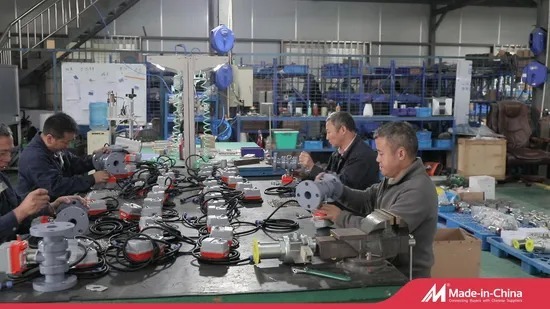

Veson Valve Ltd. is a professional manufacturer and wholesale supplier of VESON series pneumatic actuators, electric actuators, and related accessories. Our product line includes limit switch boxes, solenoid valves, positioners, air filter regulators, manual overrides, pneumatic actuated ball valves, butterfly valves, and control valves. Certified by ISO9001:2000 quality management system, we maintain strong technical support with a team that includes 2 senior engineers and 6 engineers, representing 34% of our workforce.
Actuated Stainless Steel Ball Valve (3 Piece Design) Threaded Ends - Sizes Up to 4"
Valve Features:
- Full Port 3-Piece Stainless Steel Ball Valves
- 1/4" through 4" NPT
- Direct Mount for Low-Profile, Cost-Efficient Operations
- Electric and Pneumatic Actuators
- NPT, socket weld or butt weld end
- Full port stainless steel Ball Valves 1/4" through 4"
- RTFE seats/TFE seals
- Swing out design for easy maintenance
- ISO mounting pad
Actuator Features:
Pneumatic Actuators:
- Rack and pinion Actuator design
- Spring return or double acting
- Open and closed adjustment stops
- True NAMUR accessory mounting
- Visual indicator
