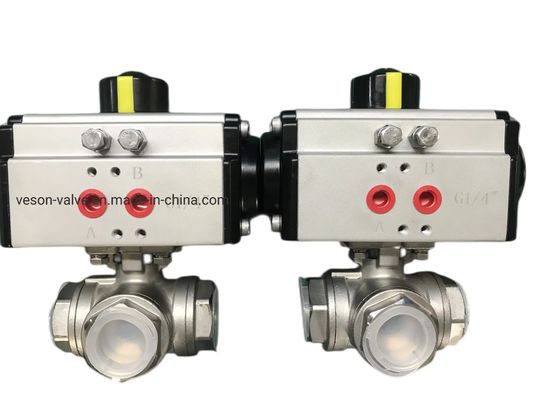

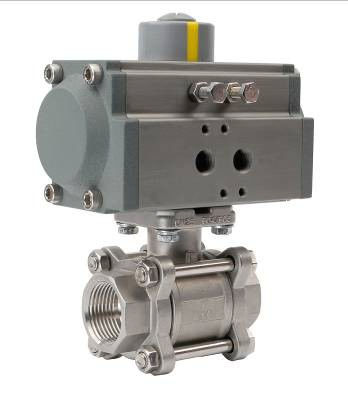

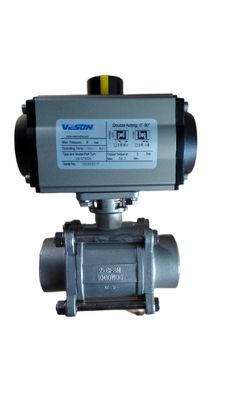

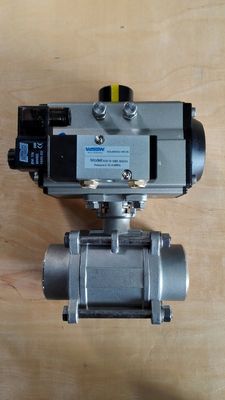

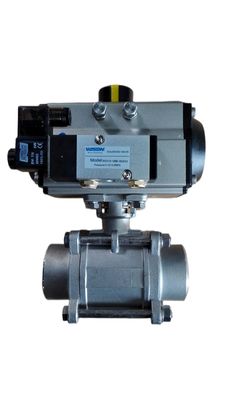

Pneumatic Actuated Ball Valve with 3-PC Design ANSI CLASS 150-900 and ASME B16.34 Standard
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model No.: | VS-240SR08-FO | Formulir Koneksi: | Flens |
|---|---|---|---|
| Mode mengemudi: | Pneumatik | Tekanan nominal: | KELAS ANSI 150-900 |
| Saluran: | Tipe lurus melalui | Struktur: | Katup bola mengambang |
| Jenis: | Katup bola mengambang | Suhu: | Suhu rendah |
| Kelas ANSI: | 150#, 300#, 600#, 900# | Ukuran katup: | 1/4 "~ 4" (dn6 ~ dn100) |
| Bahan tubuh: | CF8/CF8M/CF3M | Bahan kursi: | Ptfe, rtfe, grafit & lainnya |
| Peringkat: | 1000wog, 2000wog | Koneksi: | Benang wanita, SW, pantat-weld |
| Spesifikasi: | 1 inci-12 inci | ||
| Menyoroti: | 3-PC Design Pneumatic Ball Valve,ANSI CLASS 150-900 Actuated Ball Valve,ASME B16.34 3-PC Ball Valve |
||
Deskripsi Produk
Pneumatic Actuator Ball Valve 3-PC Screwed End Ball Valve 3PC Design Screwed End Socket End
Product Description
VS series pneumatic actuated ball valve (3-PC SCREWED END) featuring durable construction and versatile connection options for industrial applications.
Key Features
- Valve type: 3-PC Screwed End Ball Valve (two way)
- Available sizes: 1/4" to 4" (DN6 to DN100)
- Body/Ball material options: CF8/CF8M/CF3M
- Seat material options: PTFE, RTFE, Graphite & Others
- Pressure rating: 1000WOG, 2000WOG
- Connection types: Female Thread, SW (Socket Welded), Butt-weld
Specifications
| Feature | Specification |
|---|---|
| Valve Design | 3-Piece Screwed End |
| Size Range | 1/4" - 4" (DN6 - DN100) |
| Body Material | CF8/CF8M/CF3M |
| Seat Material | PTFE, RTFE, Graphite & Others |
| Pressure Rating | 1000WOG, 2000WOG |
| Connection Types | Female Thread, Socket Welded, Butt-weld |
Ingin Tahu lebih detail tentang produk ini
