Pneumatic Actuated Ball Valve with 2-PC Screwed End and PN1.0-32.0MPa Pressure Rating for Industrial Use with 12 Months Warranty
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model No.: | VS-052 ~ VS-400 | Formulir Koneksi: | Benang |
|---|---|---|---|
| Mode mengemudi: | Pneumatik | Tekanan nominal: | PN1.0-32.0MPA |
| Saluran: | Tipe lurus melalui | Struktur: | Katup bola mengambang |
| Jenis: | Katup bola mengambang | Suhu: | Suhu normal |
| Ukuran katup: | 1/4 "~ 3" (dn6 ~ dn80) | Bahan tubuh: | CF8/CF8M/CF3M |
| Bahan bola: | CF8/CF8M/CF3M | Bahan kursi: | Ptfe, rtfe, grafit & lainnya |
| Peringkat: | 1000wog | Koneksi: | Utas wanita |
| Kapasitas produksi: | 50000pc / y | ||
| Menyoroti: | 2-PC Screwed End Pneumatic Ball Valve,PN1.0-32.0MPa Pneumatic Actuated Ball Valve,12 Months Warranty Air Operated Ball Valve |
||
Deskripsi Produk

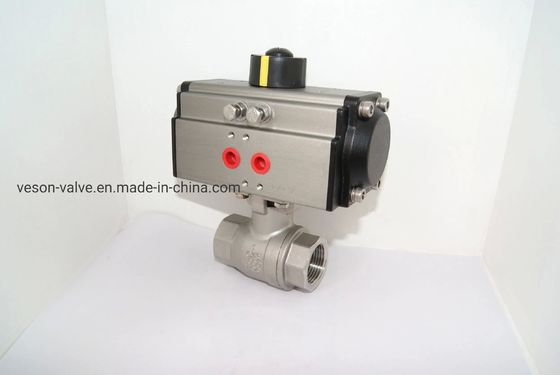

Pneumatic Actuated Ball Valve (2-PC SCREWED END)
VS series pneumatic actuated ball valve (2-PC SCREWED END) is designed for reliable flow control in industrial applications.
Key Specifications
- Valve Type: 2-PC Screwed End Ball Valve (two way)
- Valve Size Range: 1/4" to 3" (DN6 to DN80)
- Body/Ball Material Options: CF8/CF8M/CF3M
- Seat Material Options: PTFE, RTFE, Graphite & Others
- Pressure Rating: 1000WOG
- Connection Type: Female Thread
Product Images
