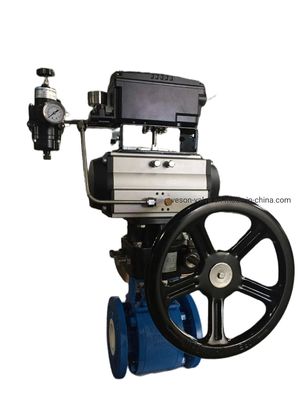

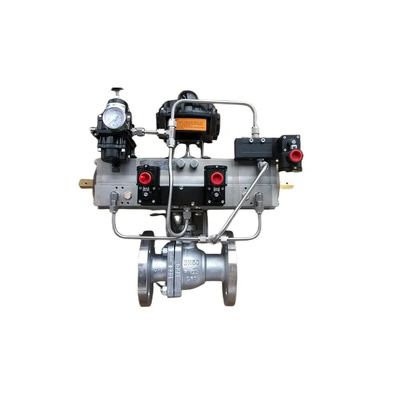

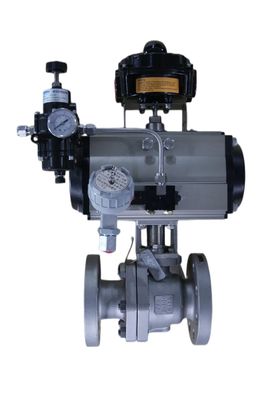

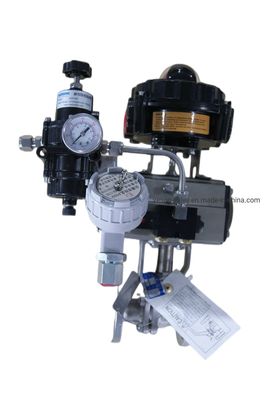

Pneumatic Flanged Ball Valve 2'' 3'' DN50 DN80 with ANSI-150lb 316 Stainless Steel Construction
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model No.: | VS-063DA | Formulir Koneksi: | Flens |
|---|---|---|---|
| Mode mengemudi: | Pneumatik | Tekanan nominal: | PN1.0-32.0MPA |
| Saluran: | Tipe lurus melalui | Struktur: | Katup bola mengambang |
| Jenis: | Katup bola mengambang | Suhu: | Suhu normal |
| Jenis 3 arah: | L-port | Akhiri dimensi flensa: | ASME B16.5 |
| Standar uji: | ASME B16.34 | Spesifikasi: | 1 inci-12 inci |
| Bahan tubuh: | 316 stainless steel | Bahan bola: | 316 stainless steel |
| Bahan batang: | 316 stainless steel | ||
| Menyoroti: | 2'' 3'' DN50 DN80 Flanged Ball Valve,ANSI-150lb Pneumatic Ball Valve,316 Stainless Steel Ball Valve |
||
Deskripsi Produk
Pneumatic 2 Way/3 Way Ball Valve - ANSI 150# Flange End
DN50/DN80 | L-PORT/T-PORT | Direct Mount Type
Veson air actuated ANSI 150# stainless steel flanged ball valves are engineered for demanding chemical and industrial applications. Featuring a full port 2-piece investment cast design, these valves directly mount to actuators with standard ISO5211 mounting pads.
Ball Valve Standard Features
- Full port design for unrestricted flow
- 316 stainless steel construction (body, ball, and stem)
- Blow-out proof stem design
- RTFE ball seats for extended cycle life
- Triple RTFE/Viton stem seal design, live loaded and adjustable
- ISO5211 direct mounting capability
- Anti-static design for safety
Pneumatic Actuator Features
- Extended cycle life (1 million cycles)
- Quarter turn rack & pinion operation
- Highly visible valve position indicator
- Compatible with dry or lubricated pilot air
- Factory lubricated for normal service life
- Anodized aluminum body with epoxy-polyester coated end covers
- Namur & ISO mounting compatibility
Technical Specifications
| Operating Pressure | 80-120 PSI |
|---|---|
| Mounting | Direct mount with ISO5211 pad |
| Orientation | Can be mounted in any position |
| Testing Standard | API 598 |
| Temperature Range | Standard or extended with optional high temperature kit |
Note: Optional accessories including high temperature valve mounting kits for extended temperature range or wall mounting applications are available.
