Air Actuated Butterfly Valve with Mid-Pressure (2.5mpa< Pn <6.4mpa) and Medium Temperature (120°C<T<450°C) for 2 inch-24 inch Industrial Applications
Detail produk:
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 1 |
|---|
|
Informasi Detail |
|||
| Model No.: | VS-063DA | Formulir Koneksi: | Flens |
|---|---|---|---|
| Struktur: | Penyegelan tengah | Bentuk segel: | Kekuatan disegel |
| Batang katup: | Normal | Tekanan kerja: | Tekanan tengah (2.5mpa <pn <6.4mpa) |
| Suhu kerja: | Suhu Sedang (120°C | Bahan segel: | Disegel lembut |
| Tubuh katup: | Lembaran logam | Spesifikasi ukuran: | 2 inci-24 inci |
| Tekanan udara aktuator: | 80-120 psi | Kehidupan Siklus Aktuator: | 1 Juta Siklus |
| Desain Aktuator: | Rack pinion | Peringkat tahan cuaca: | IP66 & IP68 |
| Standar pemasangan: | ISO5211 | ||
| Menyoroti: | Mid-Pressure Air Actuated Butterfly Valve,Medium Temperature Butterfly Valve,2 inch-24 inch Pneumatic Butterfly Valve |
||
Deskripsi Produk

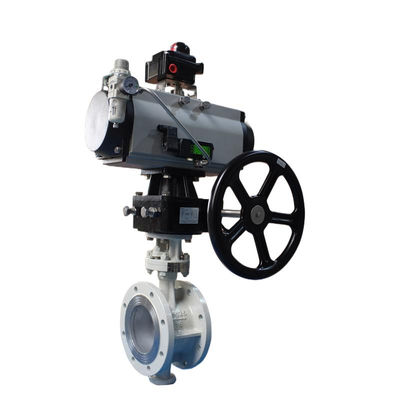

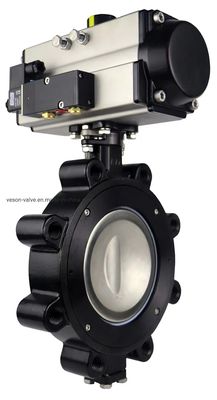

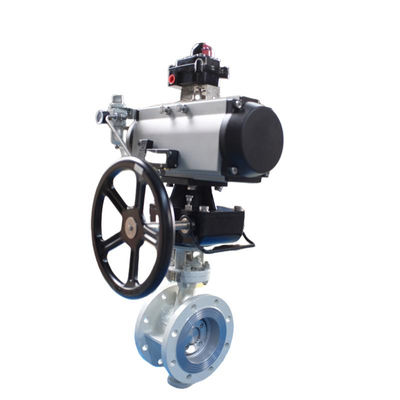

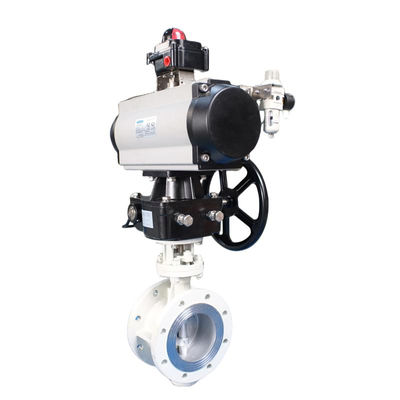

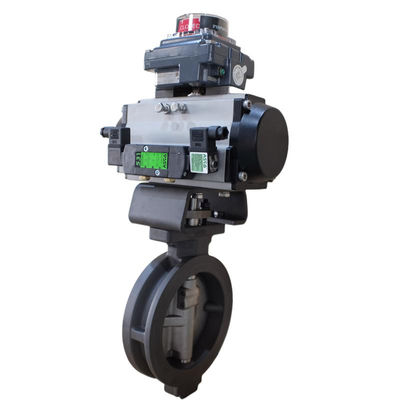

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
- Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
- Extended lifespan with unique wave line seat and special disc shape design
- Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
- Increased flow capacity through unique profile disc and two-piece shaft design
- Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack pinion design for reliable operation
- Highly visible valve position indicator
- Type IP66 & IP68 weatherproof rating
- Anodized aluminum body with epoxy-polyester covers
- Compatible with dry or lubricated pilot air
- Namur & ISO mounting options
Product Images
